Blast Proof | Fire Resistant | Low Cost | Long Lasting | Heat Resistant

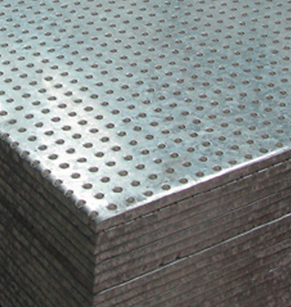

Doorsteel is a high impact heavy duty steel composite board manufactured with a fibre reinforced environmentally friendly high density calcium silicate & cement core, with outer facings of perforated galvanised steel, mechanically bonded to both outer surfaces. These boards are fire resistant up to 240 minutes and classed as non-combustible to BS 476: Part 4: 1970, BS EN 1716: 2010, BS EN 1182: 2010 and A1 to Clause 10 of BS EN 13501- 1:2002. Euro Class A1 and A1FL. Building Regulations stipulate minimum periods of fire protection required to the elements of a building’s structure. In the severest of situations, when protection is needed for up to 4 hours integrity and insulation.



Doorsteel High Impact Boards has been tested to meet this criteria in accordance with the requirements of BS476: Part 22:1987 and BS 476: Part 20-24 BS EN 1364-1 & 2. It also provides up to 3 hours for hydrocarbon fire barriers. The construction means the boards are exceptionally robust for harsh industrial and public environments.

​

Main Features & Benefits

• High fire resistance up to 240 minutes

• Excellent heat shield & thermal protection

• Very high mechanical strength

• Waterproof, shockproof, tasteless, non-toxic

• Does not rot, does not crack, deformable

• Non-combustible, high strength, heavy weight

• Convenient construction, long service life

​

Applications

• Blast resistant transformer barriers

• Ceilings and plenum ceilings

• Thermal Insulation & Heat Shield Barrier

• Electrical and mechanical services enclosures

• Fire and blast resistant walls and hoardings

• Fire rated impact resistant doors

• Hydrocarbon fire resistant barriers

• Hazardous materials vaults

• Impact resistant barriers and spandrels

• Loadbearing floors, roofs and access panels

• Ventilation, smoke outlet and kitchen extract ductwork

• Vertical shaft systems

• Fire and blast resistant walls & partitions

• Blast resistant transformer barriers,

• Steel splash protection

• Steel plant blast protection

• Steel plant heat shield barrier

• Refinery fire & blast protection

• Kitchen cylinder blast protection

• Blast security

• Kitchen cylinder fire protection

• Blast proof door manufacturing
